Key Specifications / Features
Model No.: LF 14 PF 02 Hits: 2163

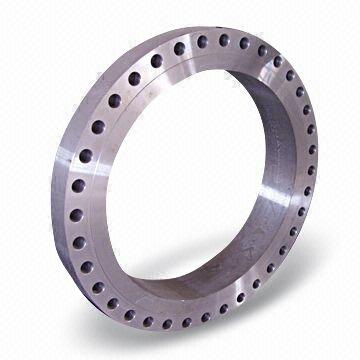

China JIS B2238 FF Alloy Steel Plate Flange: PN420, 2500LB, Alloy Steel Flat Plate Flanges, ASTM A182 F310S, F304, F304L, 1/2-64 Inch, DN15-DN1600.
Request a quote
Share
Tags:
Detail Information
Product: FF Alloy Steel Plate Flange.
Type: Plate Flange.
Materials: ASTM A182, Alloy Steel.
Grades: F310S, F304, F304L.
Face: FF.
Standards: JIS B2238.
Pressure: PN420 (2500LB).
Size: 1/2-64 Inch (DN15-DN1600).
| Rated Diameter | Flange | Weight/KG Flange | ||||||
| Pipe | X | C | D | T | h | Bolt holes | KG | |
| 10 | 17,2 | 18,0 | 60 | 90 | 14 | 14 | 4 | 0,602 |
| 15 | 21,3 | 22,0 | 65 | 95 | 14 | 14 | 4 | 0,668 |
| 20 | 26,9 | 27,5 | 75 | 105 | 16 | 14 | 4 | 0,933 |
| 25 | 33,7 | 34,5 | 85 | 115 | 16 | 14 | 4 | 1,106 |
| 32 | 42,4 | 43,5 | 100 | 140 | 18 | 18 | 4 | 1,816 |
| 40 | 48,3 | 49,5 | 110 | 150 | 18 | 18 | 4 | 2,075 |
| 50 | 60,3 | 61,5 | 125 | 165 | 20 | 18 | 4 | 2,723 |
| 65 | 76,1 | 77,5 | 145 | 185 | 20 | 18 | 4 | 3,310 |
| 80 | 88,9 | 90,5 | 160 | 200 | 20 | 18 | 8 | 3,592 |
| 100 | 114,3 | 116,0 | 180 | 220 | 22 | 18 | 8 | 4,375 |
| 125 | 139,7 | 141,5 | 210 | 250 | 22 | 18 | 8 | 5,394 |
| 150 | 168,3 | 170,5 | 240 | 285 | 24 | 22 | 8 | 7,123 |
| 200 | 219,1 | 221,5 | 295 | 340 | 26 | 22 | 12 | 9,705 |
| 250 | 273,0 | 276,5 | 355 | 405 | 29 | 26 | 12 | 14,164 |
| 300 | 323,9 | 327,5 | 410 | 460 | 32 | 26 | 12 | 18,928 |
| 350 | 355,6 | 359,0 | 470 | 520 | 35 | 26 | 16 | 28,118 |
| 400 | 406,4 | 411,0 | 525 | 580 | 38 | 30 | 16 | 35,754 |
| 450 | 457,0 | 462,0 | 585 | 640 | 42 | 30 | 20 | 45,992 |
| 500 | 508,0 | 513,5 | 650 | 715 | 46 | 33 | 20 | 63,832 |
| 600 | 610,0 | 616,5 | 770 | 840 | 55 | 36 | 20 | 101,285 |
| 700 | 711,0 | 714,2 | 840 | 910 | 63 | 36 | 24 | 111,103 |
| 800 | 813,0 | 815,8 | 950 | 1025 | 74 | 39 | 24 | 158,555 |
| 900 | 914,0 | 917,4 | 1050 | 1125 | 82 | 39 | 28 | 192,239 |
| 1000 | 1016,0 | 1019,0 | 1170 | 1255 | 90 | 42 | 28 | 269,554 |
