Model No.: LF 14 WNF 01 Hits: 1046
China Forged Steel Flange Manufacturer Landee Offers Forged Steel Weld Neck Flanges, Golden Coating, 900#(PN150), ASME B16.5, ANSI B16.5, 1/2-24 Inch.
Request a quote
Share
Tags:
Detail Information

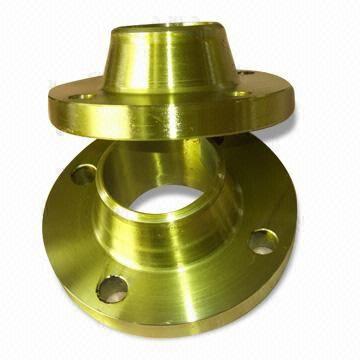

Product: Forged Steel Golden Weld Neck Flange.
Type: Weld Neck.
Material: Forged Steel.
Standards: ASME/ANSI B16.5.
Pressure: 900LB (PN150).
Size: 1/2-24 Inch (DN15-DN600).
Coating: Golden.
| Flange Normal Diam. | O.D. Flange | Thk. Of Flange Min | Diam. of Hub |
Hub Diam. Chamfer of W.N |
Length Hub | Diam. of Bolt Circle |
Diam. of Bolt Holes |
Number of Bolts |
Diam. of Bolts (inch) |
Approx. Weight | ||
| inch | dn | O | C | X | A | Y | BC | BH | BN | BD | KG/PCS | LB/PCS |
| 1/2" | 15 | 120.7 | 22.4 | 38.1 | 21.3 | 60.5 | 82.6 | 22.4 | 4 | 3/4" | 2.1 | 4.6 |
| 3/4" | 20 | 130 | 25.4 | 44.5 | 26.7 | 69.9 | 88.9 | 22.4 | 4 | 3/4" | 2.7 | 5.9 |
| 1" | 25 | 149.4 | 28.4 | 52.3 | 33.5 | 73.2 | 101.6 | 25.4 | 4 | 7/8" | 3.9 | 8.6 |
| 1-1/4" | 32 | 158.8 | 28.4 | 63.5 | 42.2 | 73.2 | 111.3 | 25.4 | 4 | 7/8" | 4.5 | 9.9 |
| 1-1/2" | 40 | 177.8 | 31.8 | 69.9 | 48.3 | 82.6 | 124 | 28.4 | 4 | 1" | 6.2 | 13.7 |
| 2" | 50 | 215.9 | 38.1 | 104.6 | 60.5 | 101.6 | 165.1 | 25.4 | 8 | 7/8" | 11.3 | 24.9 |
| 2-1/2" | 65 | 244.3 | 41.1 | 124 | 73.2 | 104.6 | 190.5 | 28.4 | 8 | 1" | 16.3 | 36 |
| 3" | 80 | 241.3 | 38.1 | 127 | 88.9 | 101.6 | 190.5 | 25.4 | 8 | 7/8" | 15 | 33 |
| 4" | 100 | 292.1 | 44.5 | 158.8 | 114.3 | 114.3 | 235 | 31.8 | 8 | 1 1/8" | 24 | 52.8 |
| 5" | 125 | 349.3 | 50.8 | 190.5 | 141.2 | 127 | 279.4 | 35.1 | 8 | 1 1/4" | 38.5 | 85 |
| 6" | 150 | 381 | 55.6 | 235 | 168.4 | 139.7 | 317.5 | 31.8 | 12 | 1 1/8" | 50 | 110 |
| 8" | 200 | 469.9 | 63.5 | 298.5 | 219.2 | 162.1 | 393.7 | 38.1 | 12 | 1 3/8" | 85 | 187 |
| 10" | 250 | 546.1 | 69.9 | 368.3 | 273.1 | 184.2 | 469.9 | 38.1 | 16 | 1 3/8" | 123 | 271 |
| 12" | 300 | 609.6 | 79.2 | 419.1 | 323.9 | 200.2 | 533.4 | 38.1 | 20 | 1 3/8" | 168 | 370 |
| 14" | 350 | 641.4 | 85.9 | 450.9 | 355.6 | 212.9 | 558.8 | 41.1 | 20 | 1 1/2" | 198 | 436 |
| 16" | 400 | 704.9 | 88.9 | 508 | 406.4 | 215.9 | 616 | 44.5 | 20 | 1 5/8" | 225 | 495 |
| 18" | 450 | 787.4 | 101.6 | 565.2 | 457.2 | 228.6 | 685.8 | 50.8 | 20 | 1 7/8" | 318 | 701 |
| 20" | 500 | 857.3 | 108 | 622.3 | 508 | 247.7 | 749.3 | 53.8 | 20 | 2" | 376 | 829 |
| 24" | 600 | 1041 | 139.7 | 749.3 | 609.6 | 292.1 | 901.7 | 66.5 | 20 | 2 1/2" | 680 | 1498 |
