Model No.: LF 14 RF 02 Hits: 11150
China DIN 2533 Carbon Steel Ring Flange: PN16, ASTM A105 F317L, F317H, F321H Ring Flange, AWWA C115, DIN 2533, DN1600, OD 1870 MM x ID 1634 MM x WT 55MM.
Request a quote
Share
Tags:
Detail Information

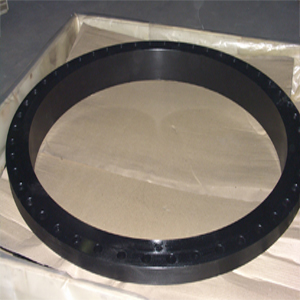

Product: DIN 2533 Carbon Steel Ring Flange.
Type: Ring Flange.
Material: ASTM A105, Carbon Steel.
Grade: F317L, F317H, F321H.
Standard: AWWA C115, DIN 2533, GOST 12815.
Pressure: PN16.
Standard: DN1600, OD 1870 MM x ID 1634 MM x WT 55MM.
| Size | D | D1 | s | t | Dp | UC | W |
| 315 mm × 12″ BS | 445 mm | 338 mm | 22 mm | 26 mm | 400 mm | 3 | 8350 g |
| 63 mm × 2″ | 165 mm | 78 mm | 18 mm | 18 mm | 125 mm | 80 | 1110 g |
| 90 mm × 3″ | 200 mm | 108 mm | 18 mm | 20 mm | 160 mm | 100 | 1400 g |
| 110 mm × 4″ | 220 mm | 128 mm | 18 mm | 22 mm | 180 mm | 100 | 1570 g |
| 125 mm × 4″ | 220 mm | 135 mm | 18 mm | 22 mm | 180 mm | 1470 g | |
| 140 mm × 5″ | 250 mm | 158 mm | 18 mm | 22 mm | 210 mm | 30 | 1930 g |
| 160 mm × 6″ | 285 mm | 178 mm | 22 mm | 24 mm | 240 mm | 12 | 2700 g |
| 180 mm × 6″ | 285 mm | 188 mm | 22 mm | 24 mm | 240 mm | 2150 g |
