Key Specifications / Features
Model No.: LF 16 WNF 43 Hits: 964

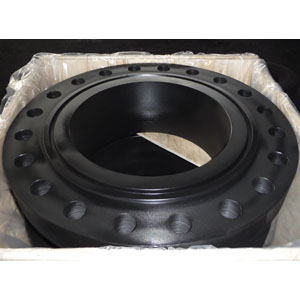

China WN Flange Manufacturer Landeeflange offers ASTM A694 B16.5 WN Flange, RTJ Face (Raised Type Joint), SCH.XS, ASME B16.5, DN500 (20 inch), PN100 (600#).
Request a quote
Share
Tags:
Detail Information
Product: Weld Neck Flange.
Material: ASTM A694 F52.
Standard: ASME B16.5.
Size: 20 inch (DN 500).
Class: 600# (PN 100)
WT: SCH.XS.
Type of Face: Raised Type Joint (RTJ).
Material: ASTM A694 F52.
Standard: ASME B16.5.
Size: 20 inch (DN 500).
Class: 600# (PN 100)
WT: SCH.XS.
Type of Face: Raised Type Joint (RTJ).
-359x241.webp)
| Size | D | C | Number of Bolts | h |
|---|---|---|---|---|
| 010 - 3/8" | 90 mm | 60 mm | 4 | 14 mm |
| 015 - 1/2" | 95 mm | 65 mm | 4 | 14 mm |
| 020 - 3/4" | 105 mm | 75 mm | 4 | 14 mm |
| 025 - 1" | 115 mm | 85 mm | 4 | 14 mm |
| 032 - 1-1/4" | 140 mm | 100 mm | 4 | 18 mm |
| 040 - 1-1/2" | 150 mm | 110 mm | 4 | 18 mm |
| 050 - 2" | 165 mm | 125 mm | 4 | 18 mm |
| 065 - 2-1/2" | 185 mm | 145 mm | 4 | 18 mm |
| 080 - 3" | 200 mm | 160 mm | 4 | 18 mm |
| 100 - 4" | 220 mm | 180 mm | 8 | 18 mm |
| 125 - 5" | 250 mm | 210 mm | 8 | 18 mm |
| 150 - 6" | 285 mm | 240 mm | 8 | 22 mm |
| 175 - 7" | 315 mm | 270 mm | 8 | 22 mm |
| 200 - 8" | 340 mm | 295 mm | 8 | 22 mm |
| 250 - 10" | 395 mm | 350 mm | 12 | 22 mm |
| 300 - 12" | 445 mm | 400 mm | 12 | 22 mm |
| 350 - 14" | 505 mm | 460 mm | 16 | 22 mm |
| 400 - 16" | 565 mm | 515 mm | 16 | 26 mm |
| 450 - 18" | 615 mm | 565 mm | 20 | 26 mm |
| 500 - 20" | 670 mm | 620 mm | 20 | 26 mm |
| 600 - 24" | 780 mm | 725 mm | 20 | 30 mm |
| 700 - 28" | 895 mm | 840 mm | 24 | 30 mm |
| 800 - 32" | 1015 mm | 950 mm | 24 | 33 mm |
| 900 - 36" | 1115 mm | 1050 mm | 28 | 33 mm |
| 1000 - 40" | 1230 mm | 1160 mm | 28 | 36 mm |
