Key Specifications / Features
Model No.: LF 14 SOF 03 Hits: 1172
China Carbon Steel Slip-On Flange: ASTM A694, ASTM A516 F42, F46, F52, S31254 Slip-On Flanges, ISO 6164, JIS B2313, HG 20594, 150LB-2500LB, 1/2-56 Inch.
Request a quote
Share
Tags:
Detail Information
Product: ASTM A694 Carbon Steel Slip-On Flange.
Type: Slip on Flange.
Materials: ASTM A694, ASTM A516, Carbon Steel.
Grades: F42, F46, F52.
Standards: ISO 6164, JIS B2313, HG 20594.
Pressure: 150LB-2500LB.
Size: 1/2-56 Inch (DN15-1400DN).

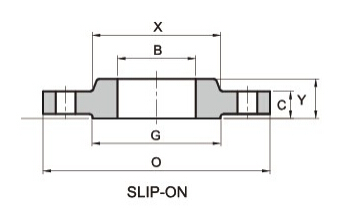

| Pipe Normal Diam. | Outside Diameter of Flange | Diameter Bore | thickness of Flange | Diameter of Raised Face | Height of Raised Face | Diameter of Hub at Base | Length through Hub | No. of Holes | Diameter of Holes | Diameter of Bolts | Diameter of Bolt Circle | Weight |
| inch | O | C | G | X | Y | BN | BH | BD | BC | lbs. | ||
| 1/2 | 5.25 | 0.88 | 1.19 | 1.38 | 0.25 | 1.69 | 1.56 | 4 | 0.88 | 3/4 | 3.5 | 7 |
| 3/4 | 5.5 | 1.09 | 1.25 | 1.69 | 0.25 | 2 | 1.69 | 4 | 0.88 | 3/4 | 3.75 | 9 |
| 1 | 6.25 | 1.36 | 1.38 | 2 | 0.25 | 2.25 | 1.88 | 4 | 1 | 7/8 | 4.25 | 12 |
| 1 1/4 | 7.25 | 1.7 | 1.5 | 2.5 | 0.25 | 2.88 | 2.06 | 4 | 1.12 | 1 | 5.12 | 18 |
| 1 1/2 | 8 | 1.95 | 1.75 | 2.88 | 0.25 | 3.12 | 2.38 | 4 | 1.25 | 1 1/8 | 5.75 | 25 |
| 2 | 9.25 | 2.44 | 2 | 3.62 | 0.25 | 3.75 | 2.75 | 8 | 1.12 | 1 | 6.75 | 38 |
| 2 1/2 | 10.5 | 2.94 | 2.25 | 4.12 | 0.25 | 4.5 | 3.13 | 8 | 1.25 | 1 1/8 | 7.75 | 55 |
| 3 | 12 | 3.57 | 2.62 | 5 | 0.25 | 5.25 | 3.63 | 8 | 1.38 | 1 1/4 | 9 | 83 |
| 4 | 14 | 4.57 | 3 | 6.19 | 0.25 | 6.5 | 4.25 | 8 | 1.62 | 1 1/2 | 10.75 | 127 |
| 5 | 16.5 | 5.66 | 3.62 | 7.31 | 0.25 | 8 | 5.13 | 8 | 1.88 | 1 3/4 | 12.75 | 210 |
| 6 | 19 | 6.72 | 4.25 | 8.5 | 0.25 | 9.25 | 6 | 8 | 2.12 | 2 | 14.5 | 323 |
| 8 | 21.75 | 8.72 | 5 | 10.62 | 0.25 | 12 | 7 | 12 | 2.12 | 2 | 17.25 | 485 |
| 10 | 26.5 | 10.88 | 6.5 | 12.75 | 0.25 | 14.75 | 9 | 12 | 2.62 | 2 1/2 | 21.25 | 925 |
| 12 | 30 | 12.88 | 7.25 | 15 | 0.25 | 17.38 | 10 | 12 | 2.88 | 2 3/4 | 24.38 | 1300 |
