Model No.: LF 14 RSF 02 Hits: 2754

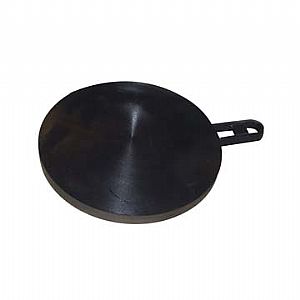

China ASTM A516 Black Spade Flange: ANSI B16.48, API 590, FF Carbon Steel Spade Flange, F60, F65, F70, PN16-PN250, 1/8-40 Inch, DN6-DN1000, Anti-Rust.
Request a quote
Share
Tags:
Detail Information
Product: Flat Anti-Rust Spade Flange.
Type: Spade Flange.
Materials: ASTM A516, Carbon Steel.
Grades: F60, F65, F70.
Face: FF.
Standards: ANSI B16.48, API 590.
Pressure: PN16-PN250.
Size: 1/8-40 Inch (DN6-DN1000).
Surface Finish: Black, Anti-Rust.
Dimensional Data (Inches)
| SIZE | A | L | W1 |
| 1/2" | 1.75 | 4.00 | 1.00 |
| 3/4" | 2.12 | 4.00 | 1.00 |
| 1" | 2.50 | 4.00 | 1.00 |
| 1 1/4" | 2.88 | 4.00 | 1.00 |
| 1 1/2" | 3.25 | 4.00 | 1.00 |
| 2" | 4.00 | 4.00 | 1.00 |
| 2 1/2" | 4.75 | 4.00 | 1.00 |
| 3" | 5.25 | 4.00 | 1.00 |
| 3 1/2" | 6.25 | 4.00 | 1.00 |
| 4" | 6.75 | 4.00 | 1.00 |
| 5" | 7.62 | 4.00 | 1.00 |
| 6" | 8.62 | 4.00 | 1.00 |
| 8" | 10.88 | 4.00 | 1.00 |
| 10" | 13.25 | 5.00 | 1.00 |
| 12" | 16.00 | 5.00 | 1.50 |
| 14" | 17.62 | 5.00 | 1.50 |
| 16" | 20.12 | 5.00 | 1.50 |
| 18" | 21.50 | 5.00 | 1.50 |
| 20" | 23.75 | 5.00 | 1.50 |
| 24" | 28.12 | 5.00 | 1.50 |
