Model No.: LF 14 WNF 12 Hits: 655
China A350 Forged Steel Welding Neck Flange Manufacuturer: ASTM A350, 300LB, PN50 Welding Neck Flanges, 26-60 Inch, HG 20593, ISO 7005, DN650-DN1500.
Request a quote
Share
Tags:
Detail Information

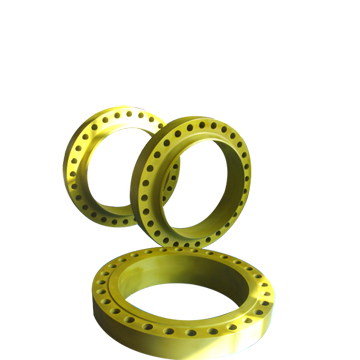

Product: 300LB Forged Steel Welding Neck Flange.
Type: Welding Neck Flange.
Materials: ASTM A350, Forged Steel.
Standards: HG 20593, ISO 7005.
Pressure: 300LB (PN50).
Sizes: 26-60 Inch (DN650-DN1500).
| Pipe Normal Diam. | O.D. OF Flange |
Thickness | Length Through Hub |
Diam. of Hub at Base |
Hub Diam. Top |
Raised Face Diam. |
Diam. of Bolt Circle |
No. of Bolt Holes |
Diam. of Bolt Holes |
Diam. of Bolt |
Fillet Radius Min. |
| inch | O | C | Y | X | A | R | BD | BN | BH | DB | r1 |
| 26" | 866.6 | 88.9 | 144.5 | 701.5 | 665.2 | 736.6 | 803.1 | 32 | 35.1 | 1 1/4 | 14.2 |
