Key Specifications / Features
Model No.: LF 14 LJF 03 Hits: 412

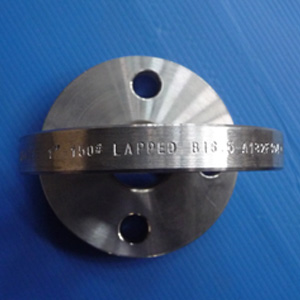

China ASTM A182 Lapped Joint Flange Manufacturer Landee offers ASTM A182 F304 Lapped Joint Flange, DN25, ANSI B16.5, without surface treatment.
Request a quote
Share
Tags:
Detail Information
Product: Lapped Joint Flange.
Material: SS A182 F304.
Standard: ANSI B16.5.
Size: DN25.
Surface Treatment: NO.
Material: SS A182 F304.
Standard: ANSI B16.5.
Size: DN25.
Surface Treatment: NO.
-200x77.webp)
| CL | 150 | 300 | 600 | 900 | 1500 | 2500 |
| DIA A |
30 | 38 | 38 | 38 | 38 | 43 |
| DIA D |
90 | 95 | 95 | 120 | 120 | 135 |
| THK B |
11.2 | 14.3 | 14.3 | 22.3 | 22.3 | 30.2 |
| DIA G |
35.1 | 35.1 | 35.1 | 35.1 | 35.1 | 35.1 |
| DIA K |
60.3 | 66.7 | 66.7 | 82.6 | 82.6 | 88.9 |
| H | 16 | 22 | 22 | 32 | 32 | 40 |
| NO. L |
4 | 4 | 4 | 4 | 4 | 4 |
| DIA L |
15.9 | 15.9 | 15.9 | 22.2 | 22.2 | 22.2 |
