Key Specifications / Features
Model No.: LF 14 WNF 29 Hits: 2140

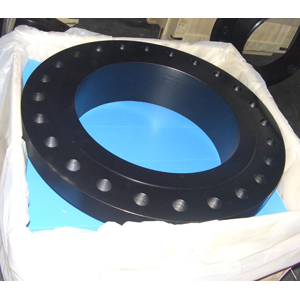

China ASTM A105N Weld Neck Flange Manufacturer: ASTM A105N Weld Neck Flanges, Raised Face, 24 Inch (DN600), Class 600 LB (PN100), SCH 80, ASME B16.5.
Request a quote
Share
Tags:
Detail Information
Product: ASTM A105N Weld Neck Flange.
Material: ASTM A105N.
Face: RF.
Standard: ASME B16.5.
Pressure: 600 LB (PN100).
Schedule: SCH 80.
Size: 24"(DN600).
* indicates: to be specified by purchaser.| Nominal Pipe Size |
Outside Diameter (O) |
Thickness (T) |
Raised Face Diameter (R) |
Length Thru Hub (Y) |
Point of Weld (A) |
Hub Diameter (X) |
Bore (B) |
Approximate Weight (lbs) |
Bolt Circle (C) |
Number of Holes |
Diameter of Holes |
| 1/2 | 3.75 | 0.56 | 1.38 | 2.06 | 0.84 | 1.50 | * | 2 | 2.63 | 4 | 0.63 |
| 3/4 | 4.63 | 0.63 | 1.69 | 2.25 | 1.05 | 1.88 | * | 4 | 3.25 | 4 | 0.75 |
| 1 | 4.88 | 0.69 | 2.00 | 2.44 | 1.32 | 2.13 | * | 4 | 3.50 | 4 | 0.75 |
| 1 1/4 | 5.25 | 0.81 | 2.50 | 2.63 | 1.66 | 2.50 | * | 6 | 3.88 | 4 | 0.75 |
| 1 1/2 | 6.13 | 0.88 | 2.88 | 2.75 | 1.90 | 2.75 | * | 8 | 4.50 | 4 | 0.88 |
| 2 | 6.50 | 1.00 | 3.63 | 2.88 | 2.38 | 3.31 | * | 12 | 5.00 | 8 | 0.75 |
| 2 1/2 | 7.50 | 1.13 | 4.13 | 3.13 | 2.88 | 3.94 | * | 18 | 5.88 | 8 | 0.88 |
| 3 | 8.25 | 1.25 | 5.00 | 3.25 | 3.50 | 4.63 | * | 23 | 6.63 | 8 | 0.88 |
| 3 1/2 | 9.00 | 1.38 | 5.50 | 3.38 | 4.00 | 5.25 | * | 26 | 7.25 | 8 | 1.00 |
| 4 | 10.75 | 1.50 | 6.19 | 4.00 | 4.50 | 6.00 | * | 42 | 8.50 | 8 | 1.00 |
| 5 | 13.00 | 1.75 | 7.31 | 4.50 | 5.56 | 7.44 | * | 68 | 10.50 | 8 | 1.13 |
| 6 | 14.00 | 1.88 | 8.50 | 4.63 | 6.63 | 8.75 | * | 81 | 11.50 | 12 | 1.13 |
| 8 | 16.50 | 2.19 | 10.63 | 5.25 | 8.63 | 10.75 | * | 120 | 13.75 | 12 | 1.25 |
| 10 | 20.00 | 2.50 | 12.75 | 6.00 | 10.75 | 13.50 | * | 190 | 17.00 | 16 | 1.38 |
| 12 | 22.00 | 2.63 | 15.00 | 6.13 | 12.75 | 15.75 | * | 225 | 19.25 | 20 | 1.38 |
| 14 | 23.75 | 2.75 | 16.25 | 6.50 | 14.00 | 17.00 | * | 280 | 20.75 | 20 | 1.50 |
| 16 | 27.00 | 3.00 | 18.50 | 7.00 | 16.00 | 19.50 | * | 390 | 23.75 | 20 | 1.63 |
| 18 | 29.25 | 3.25 | 21.00 | 7.25 | 18.00 | 21.50 | * | 475 | 25.75 | 20 | 1.75 |
| 20 | 32.00 | 3.50 | 23.00 | 7.50 | 20.00 | 24.00 | * | 590 | 28.50 | 24 | 1.75 |
| 22 | 34.25 | 3.75 | 25.25 | 7.75 | 22.00 | 26.25 | * | 720 | 30.63 | 24 | 1.88 |
| 24 | 37.00 | 4.00 | 27.25 | 8.00 | 24.00 | 28.25 | * | 830 | 33.00 | 24 | 2.00 |
