Key Specifications / Features
Model No.: LF 16 WNF 37 Hits: 403

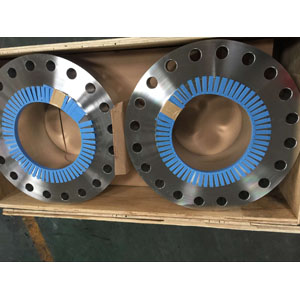

China Welding Neck Flange: ASME B16.5, SCH 80 Wall Thickness, Material ASTM A182 F304L, 10 Inch and 900LBS Class Rating.
Request a quote
Share
Tags:
Detail Information
Keywords: ASME B16.5 Welding Neck Flange 900LBS 10 Inch RF, SCH 80, A182 F304L.
Product: Welding Neck RF Flange.
Material: ASTM A182 F304L.
Size: DN 250 (10 Inch).
Wall thickness: SCH 80.
Class Rating: 900LBS.
Standard: ASME B16.5.
| Class | 150 | 300 | 400 | 600 | 900 | 1500 | 2500 |
| Diameter - A | 30 | 38 | 38 | 38 | 38 | 38 | 43 |
| Diameter - D | 90 | 95 | 95 | 95 | 120 | 120 | 135 |
| Thickness - B | 9.6 | 12.7 | 14.3 | 14.3 | 22.3 | 22.3 | 30.2 |
| 11.2 | 14.3 | 20.7 | 20.7 | 28.7 | 28.7 | 36.6 | |
| Diameter - G | 35.1 | 35.1 | 35.1 | 35.1 | 35.1 | 35.1 | 35.1 |
| Diameter - K | 60.3 | 66.7 | 66.7 | 66.7 | 82.6 | 82.6 | 88.9 |
| Height - H | 46 | 51 | 52 | 52 | 60 | 60 | 73 |
| 47.6 | 52.6 | 58.4 | 58.4 | 66.4 | 66.4 | 79.4 | |
| Bolt Holes | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Diameter - L | 15.9 | 15.9 | 15.9 | 15.9 | 22.2 | 22.2 | 22.2 |
