Key Specifications / Features
Model No.: Hits: 22
The ASME B16.1 Weld Neck Flange is a type of industrial flange that is widely used in piping systems for various industries, such as oil and gas, chemical, and petrochemical. This flange is designed to be welded to the pipe for a strong, leak-proof connection. It conforms to the ASME B16.1 standard, ensuring its high quality and reliability. With its raised face design, it provides excellent sealing capabilities, making it ideal for high-pressure and high-temperature applications. Choose from a variety of sizes and pressure ratings to suit your specific needs. Trust in the ASME B16.1 Weld Neck Flange for a durable and secure connection in your piping system.
Request a quote
Share
Tags:
Detail Information

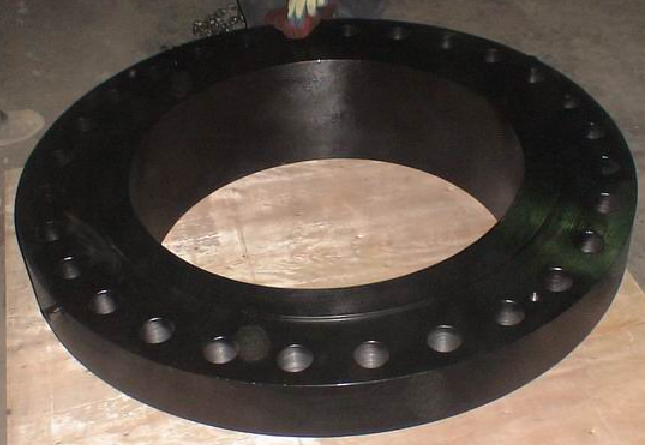

ANSI B16.1, ASME B16.1 96 Inch CLASS 125 Flat Face Weld Neck Flange
Product Name: Weld Neck Flange
Standard: ANSI B16.1, ASME B16.1
Pressure: Class 125 LB
Nominal Size: 96 Inch
Feature: Weld neck Flat Face
Bore: 2402.2 mm
Product Name: Weld Neck Flange
Standard: ANSI B16.1, ASME B16.1
Pressure: Class 125 LB
Nominal Size: 96 Inch
Feature: Weld neck Flat Face
Bore: 2402.2 mm
