Key Specifications / Features
Model No.: LF 14 RF 01 Hits: 1422

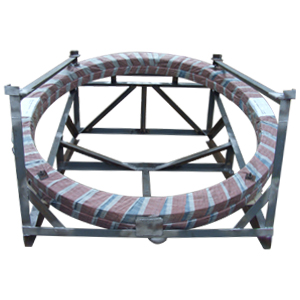

China Big Size Forged Ring Flange: ASTM A105 CL3/F317/F304H/F310H Carbon Steel Ring Flange, ANSI B16.47, DN2000, OD 2338 MM x ID 2038 MM x WT 90MM.
Request a quote
Share
Tags:
Detail Information
Product: Big Size Forged Ring Flange.
Material: ASTM A105, Carbon Steel.
Grade: CL3, F317, F304H, F310H.
Standard: API 650, API 6A, ANSI B16.47.
Size: DN 2000, OD 2338 MM x ID 2038 MM x WT 90MM.
| Size | D | D1 | s | t | Dp | UC | W |
| 315 mm × 12″ BS | 445 mm | 338 mm | 22 mm | 26 mm | 400 mm | 3 | 8350 g |
| 63 mm × 2″ | 165 mm | 78 mm | 18 mm | 18 mm | 125 mm | 80 | 1110 g |
| 90 mm × 3″ | 200 mm | 108 mm | 18 mm | 20 mm | 160 mm | 100 | 1400 g |
| 110 mm × 4″ | 220 mm | 128 mm | 18 mm | 22 mm | 180 mm | 100 | 1570 g |
| 125 mm × 4″ | 220 mm | 135 mm | 18 mm | 22 mm | 180 mm | 1470 g | |
| 140 mm × 5″ | 250 mm | 158 mm | 18 mm | 22 mm | 210 mm | 30 | 1930 g |
| 160 mm × 6″ | 285 mm | 178 mm | 22 mm | 24 mm | 240 mm | 12 | 2700 g |
| 180 mm × 6″ | 285 mm | 188 mm | 22 mm | 24 mm | 240 mm | 2150 g |
